Dürr Dental VistaIntra DC
Dürr Dental VistaIntra DC
MYR20,000.001 items left
The product selection is not available.
Product Description:
Systematic X-ray solution – perfect in function and design
Quantity

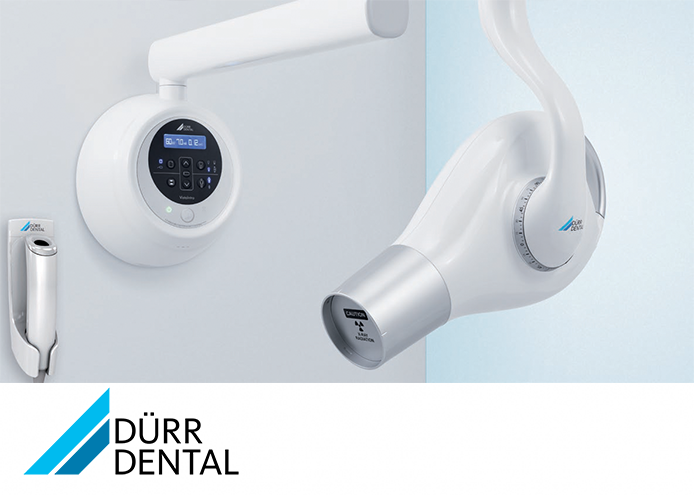

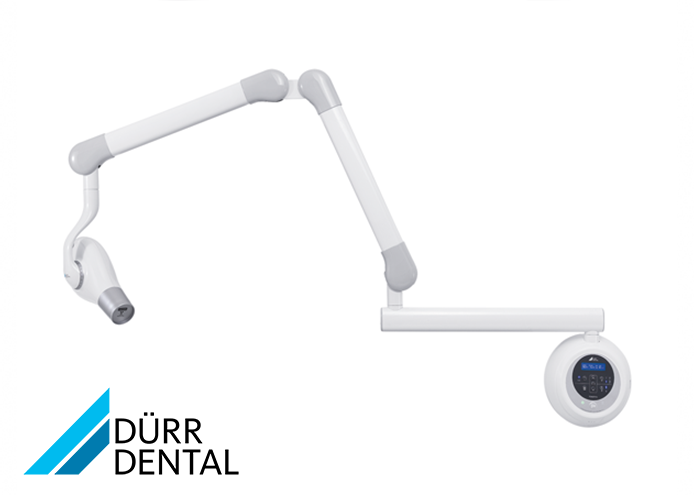

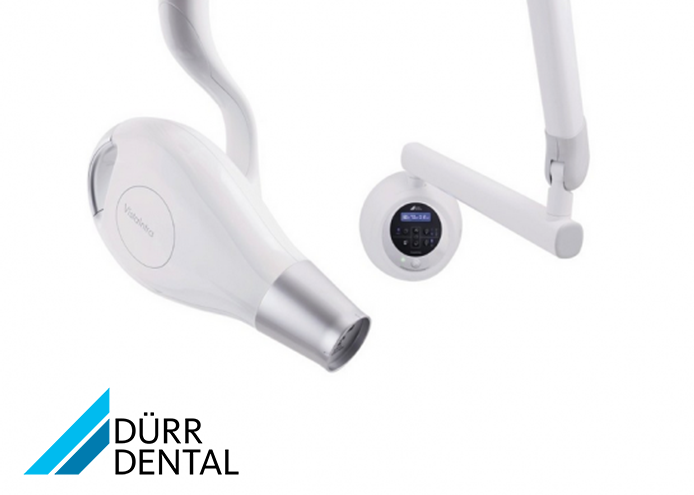

Dürr Dental VistaIntra DC

X-rays in the system - everything from a single provider

With VistaIntra, we now also offer you X-ray generators for excellent intraoral images. VistaIntra impresses with its exemplary ergonomic design and is perfectly matched to Dürr Dental image plates. Dürr Dental‘s expertise and quality is now available to you for all your X-ray system needs: from X-ray sources, X-ray film developers and scanners through to sensors and imaging software. Dürr Dental offers you a complete system from a single provider which assures you the best image results thanks to optimally matched system components.

This is what really matters:

  • Modern, slim design for easy, precise positioning
  • Easy operation concept
  • Perfectly matched to image plates and sensors
  • Highly reliable and long service life for X-ray tubes
  • Constant radiation
  • mA and kV levels are adjustable
  • DC generator with 0.4 mm focal spot
  • DAP (dose area product) after exposure

Versatile and highly efficient

Instant, high-quality image results
The VistaIntra is already precisely pre-programmed in the factory for the specific X-ray dose which is required for each view of teeth when using Dürr Dental image plates and sensors. This it is ready for immediate use and delivers perfectly exposed, clear images.
Precisely aligned with right-angle/parallel technology
Optimum images can be easily produced by using the Dürr Dental RWT Set Color.
Easily operated, highly ergonomic
Thanks to the handle on the generator head, VistaIntra can be comfortably and precisely positioned. Users can also select different views of teeth very easily. If required, X-ray parameters can be finely adjusted and a quick switch between two different radiation settings can also be made – e. g. for image plates and sensors. The obvious symbols on the timer also enhance the workflow and reduce the risk of operating errors.


VistaIntra DC
Power input (V, Hz) AC 100 - 240 10 %, 50/60
Power consumption (W) 500
Tube voltage (kVp) 60 - 70
Tube current (mA) 4 - 7
Tube length (mm) 200 (300 optional)
Radiation field limits (mm) Ø 60 / 30 x 40 (20 x 30 optional)
Exposure time (sec.) 0.04 - 2
Focal spot (mm) 0.4 (IEC 336)
Total filtration (mm) Min. 2.0 Al
Weight kg 18.5
Height (mm) 1730
max. working length (mm) 1810 / 1960 / 2260
