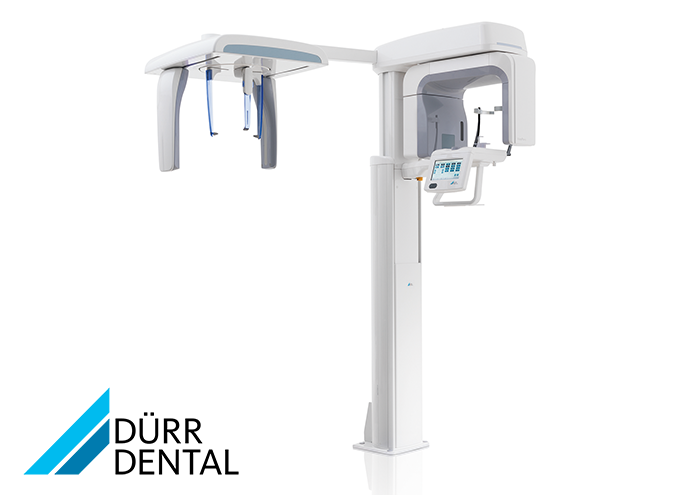

Dürr Denta VistaPano S Ceph - exemplary ergonomics
Quick cephalometric projections with low X-ray dose
Quick cephalometric X-ray images with excellent image quality are achieved with the new VistaPano S Ceph and with the lowest possible dose. The reason for this is the extreme short scanning time of the line sensor – 4.1 senconds only – which significantly reduces the risk of motion blur. For young patients undergoing orthodontic treatment, the combination of low X-ray dose and short scanning time presents a considerable advantage. The two high-end CsI sensors - for panoramic X-ray and Ceph projection – already integrated in the unit eliminate the time-consuming switching of the sensor, and thus the risk of damage. All this makes VistaPano S Ceph the ideal X-ray solution for orthodontic surgery and maxillofacial surgery. In addition, the VistaPano S Ceph offers you all functions and advantages of the VistaPano S.
This is what counts:
- Very fast scan in 4.1 seconds (lat. head)
- Excellent image quality
- Low radiation dose
- No sensor change, 2 high-end CsI sensors are integrated

The S-Pan technology in comparison: the image sections are automatically selected from a range of parallel layers, which best correspond to the patient anatomy. The result is an image of impressive clarity.


- User support by clear signals
optical/ acoustic:
- S-Pan technology: Safe diagnosis due to extremely sharp images
Common digital X-ray units create panoramic images along a preset shape which follows the jaw arch of an ‘average’ human in the axial plane. This shows a layer whose position can be considered as the unfolding of a flat sheet of paper that is placed upright around this shape. This is almost always a compromise. Our S-Pan technology is completely different. Here, the image areas that match best with the actual anatomy are automatically selected from a large number of parallel layers. Together, they result in a panoramic image which represents the actual anatomy of the patient. Deviations from the ‘average dentition’ are also taken into account as well as individual inclinations of the teeth. No compromises are necessary. The result is an image of pin-point clarity. The dentist can easily identify the structures that are of interest for him. As the reconstruction is oriented to the actual position of the teeth, false positioning is ‘evened out’ to a certain extent. This saves time for the surgery and prevents the patient from taking additional X-ray images
- CsI sensor
CsI sensor for better image quality and reduced dose
- Easy and efficient patient positioning
The three positioning light lines mark the exact alignment of the Frankfort horizontal plane mid-sagittal plane and image layer plane. The face-to-face positioning without mirror enables a direct visual contact between therapist and patient, thus promoting the sense of well-being and hence the cooperation of the patient.
- All functions at a glance
The intuitive 7” touch display visualises all settings quick and clearly. Handling and navigation are extremely user-friendly which leads to a smooth overall X-ray operational sequence. At the beginning, you simply select the X-ray program and the patients size – this prevents handling errors and ensures an optimal workflow.
- Nice to have
Shelf for glasses/jewellery
- Panorama X-ray programs
With a total of 17 X-ray programs, you are well equipped for every diagnosis. In addition to the standard panorama program, VistaPano S offers:
-
- Half-side recordings of right, left and front
- 4 child programs with smaller exposure area and lower X-ray parameters which reduces the dose by 45 – 56 % without loss of diagnostic information
- 5 programs for orthogonal X-ray images
- 2 programs for mandibular X-ray images (functional diagnosis)
- 2 programs for sinus X-ray images to display paranasal sinuses
Ceph X-ray programs
Beisdes the 17 panoramic programs available, 5 new ones for all cephalometric X-ray recordings are now also included.
- Always the right image size
With an image height of 150 mm, the VistaPano S displays an extended diagnosable jaw area and also the paranasal sinuses in high quality. If the child program is selected, the radiation exposure is significantly reduced due to the lower aperture as well as due to a shorter scanning time.
- Imaging software DBSWIN for diagnostic support
The intuitively operating, network capable imaging software from Dürr Dental optimises all images automatically, saves them and makes them available at all work stations. With diagnostic-supporting digital filters, the contrast and sharpness of the X-ray images can also be edited to enable more detailed diagnoses. The software supports DICOM environments as well as the VDDS media interface. Connection to a third-party software is possible via VistaEasy, VistaConnect, ImageBridge or TWAIN. Your image data is also available on the iPad using the Dürr Dental imaging app.
- Fits into all surgeries
The slim, delicate design of the new VistaPano S Ceph offers many placement possibilities in your surgery rooms, thanks to its elegant eye-catching design and compact style with dimensions of just 2.0 x 1.5 x 2.3 m (W x D x H). The cephalometric arm is situated on the left side of the VistaPano S panoramic X-ray unit.
- Also suitable for children or wheelchair users.
Long vertical path, thus suitable for tall patients as well as for children and wheelchair users.
- Ceph X-ray programs
Besides the 17 panoramic programs available, 5 new ones for all cephalometric X-ray recordings are now also included:
- Lateral head L
- PA head
- SMV (submentovertex)
- Waters view
- Hand
- Short scanning time, low X-ray dose, best image quality
Thanks to the very short scanning time of only 4.1 seconds, the patient is exposed to the lowest dose possible. Due to the modern high-sensitivity CsI sensors, an excellent image quality can be achieved despite the low dose:
