W&H Lina Sterilizer
W&H Lina Sterilizer
MYR17,000.002 items left
MYR20,000.002 items left
The product selection is not available.
Product Description:
The power of efficiency Usability outside. Technology inside. B type sterilizer for best performance. To prevent the transmission of infections, steam sterilization plays a significant role in the reprocessing of dental instruments. Thereby, efficiency and simplicity are crucial. The new generation of Lina sterilizers meet all these requirements and more: simple operation, ergonomic and functional design, appropriate sterilization cycles and upgradeable functions guarantee high efficiency leading to maximum results.
Select Options
Quantity
W&H B type sterilizer, yet brilliant
Interrupting the chain of infection.
B type sterilizer – for peace of mind reprocessing and infection prevention.
Benefits at a glance:
  • B type sterilizer with the best cycle times of its category.
  • Ease of use for an unrivalled smooth user experience.
  • Unique upgradeability for customising and modernising the device according to your needs.
  • Advanced traceability for complete documentation.
Improved components
Simplified work processes
Usability outside.
The Lina sterilizer is characterised by an effortless handling, ergonomic and functional design. Ideal to simplify the sterilization process and thus to ensure an efficient workflow in your practice.
“The risk of infection is actively minimised by sterilization! Because it's all about the safety of your patients, your staff and yourself.”

How may you benefit from the improved usability?

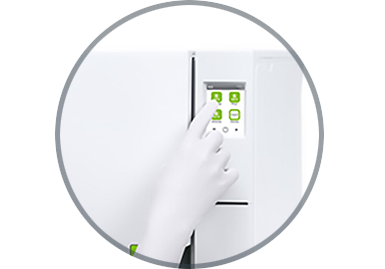

Ease of use

  • The 3.5’’ touch screen display enables smooth operation.
  • The simplified user interface and menu structure support practices in all daily activities.

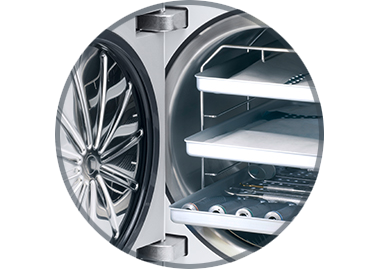

Optimal sterilization programs

  • The Eco B sterilization program reprocesses 0.5 kg in 25 minutes.
  • Lina can reprocess up to 6 kg of load to meet all requirement of dental clinics.
  • The B Universal 121oC cycle even allows the reprocessing of sensitive items, including porous such as surgical clothing.

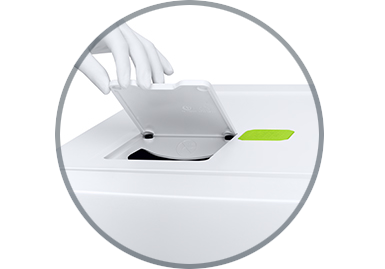

Design and maintenance

  • The easily removable cover allows effortless access to the water tanks without tools. Filling is particularly easy with the integrated funnel.
  • Thanks to the high level of realibility, the service interval is set to 4,000 cycles or 5 years.
  • The design impresses with its ergonomic and functional shape and fits in anywhere thanks to modular feet and compact layout.

Technical concepts
Realised visions
Technolgy inside.
Not only the outside, but also the technical expertise inside makes the difference. The Lina sterilizer is based on a sophisticated technical concept that offers future-oriented possibilities and significantly simplifies your workflow.
How may you benefit from the advanced technology?
“Use the technological upgrades to master all challenges with your sterilizer – today and tomorrow!”

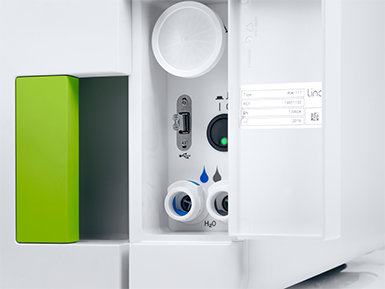

Enchanced traceability

  • The documentation is automatically saved via a high-capacity USB stick.
  • The barcode label printer provides additional support on traceability thanks to the opportunity to link cycle, sterilization package and patient.
  • The cycle report printer ensures adequate paper documentation of the cycle.

Advanced connectivity

  • The ioDent® system offers intelligent dental solutions and allows an advanced service support.
  • The W&H Steri App allows controlling and remote monitoring of the sterilizer. Moreover, cycle history back-up saved on smartphone ensures extra-safety.

Unique upgradeability

  • The Activation Code system is an innovative upgradeability tool. Activation Codes offer a tailored opportunity to enchance additional features that meet your practice needs and comply with future requirements. Effectively, for customising and upgrading your Lina sterilizer.

Unique upgradeability
Covering individual needs.
Needs and requirements may change. Prepare yourself now: with the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.
S Naked
The "S Naked" cycle features ensures maximum speed for reprocessing unwrapped handpieces.
Remote Data Storage
The "Remote Data Storage" features is the ideal addition for the digital cycle documentation. It offers the possibility to save cycles directly on PC.
Traceability
The "Traceability" feature enables user identification and load release confirmation. Identification is secured by a PIN directly on the LINA sterilizer and the W&H Steri App.
All in One
The “All in One” feature provides all benefits at once – and ultimately your sterilizer becomes an unattainable price-performance ratio.
Six steps to your customized sterilizer:
  1. Purchase Activation Code of your choice from your local approved dental supplier.
  2. After receiving the related login code, go to activation.wh.com
  3. Enter this code along with serial number and model of your sterilizer.
  4. Your individual, secure Activation Code is generated.
  5. Enter this code in the menu of your Lina sterilizer.
  6. The feature is available.

Lina supplied with reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test
  • Lina 17 (RIK-117) REF 19951130
    Chamber size 17 litre
  • Lina 17 (RIK-117) REF 19951131
    AWF (Automatic water filling) Chamber size 17 litre
  • Lina 22 (RIK-122) REF 19952130
    Chamber size 22 litre
  • Lina 22 (RIK-122) REF 19952131
    AWF (Automatic water filling) Chamber size 22 litre

Lina sterilization cycles

Sterilization cycle B-Universal 134 B-Prion 134 B-Universal 121 S naked 134 (optional)
Temperature: 134 °C 134 °C  121 °C 134 °C
Holding time (minutes): 4' 18' 30'' 20' 30'' 4'
Total cycle duration
(minutes) including
complete drying:		 Automatic from Typical
load		 Automatic from Typical
load		 Automatic from Automatic from
Lina 17
25’–49’
 45'
40’–64’
 60‘ 63’–71’ 20’–26’
Lina 22
28’–52’
 48’
43’–67’
 63’ 65’–74’ 21’–27’
Lina17 loads:
Lina 22 loads:
maximum 3.5–5.5(1) kg/typical 2 kg/maximum porous 0.5–1.5(2) kg
maximum 4–6(3) kg/typical 2 kg/maximum porous 0.5–2(4) kg
max. 4 kg unwrapped
max. 4 kg unwrapped
Lina 17/22 containers: maximum 6 kg
Test cycles: Helix/Bowie and Dick/Vacuum


Items supplied with: reversible rack, 3 aluminium trays, drain hose, tray holder, 8 GB USB stick, door opening tool, factory test



(1) Duration reported in the table refers to 3.5 kg. It is possible to sterilize up to 5.5 kg by drying time extension.
(2) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 1.5 kg by drying time extension.
(3) Duration reported in the table refers to 4.0 kg. It is possible to sterilize up to 6.0 kg by drying time extension.
(4) Duration reported in the table refers to 0.5 kg. It is possible to sterilize up to 2.0 kg by drying time extension.

Lina

Lina 17

Lina 22

Type:

RIK-117

RIK-122

Chamber size:

17 l

22 l

Power supply:

200–240 V AC; 50 Hz or 60 Hz; 10 A single phase

200–240 V AC; 50 Hz or 60 Hz; 10 A single phase

Power consumption:

2.0–2.4 kW

Overall dimension (w x h x d):

465 × 452 × 646 mm

Weight (empty):

40 kg

42 kg

Main/Used water tanks:

4.8/4.8 l

Working range:

7 to 10 cycles

Usable space in chamber (w x h x d):

195 × 195 × 312 mm

195 × 195 × 400 mm

Connection types:

1 USB port in the front (additional 1 in the rear as option), automatic water filling kit (optional)

Lina sterilizers were designed, certified and validated with the most stringent directives and standards:

93/42/EEC

Medical Device Regulation

IEC 61326-1

Electromagnetic compatibility

2014/68/EU

Pressure equipment Directive

IEC 61010-1

Safety requirements sterilizer

EN 13060

Small steam sterilizer

IEC 61010-2-040

Specific requirements for steam sterilizer

IEC 61770

Electric appliances connected to the water mains


The sterilizer can be validated according to EN ISO 17665-1
