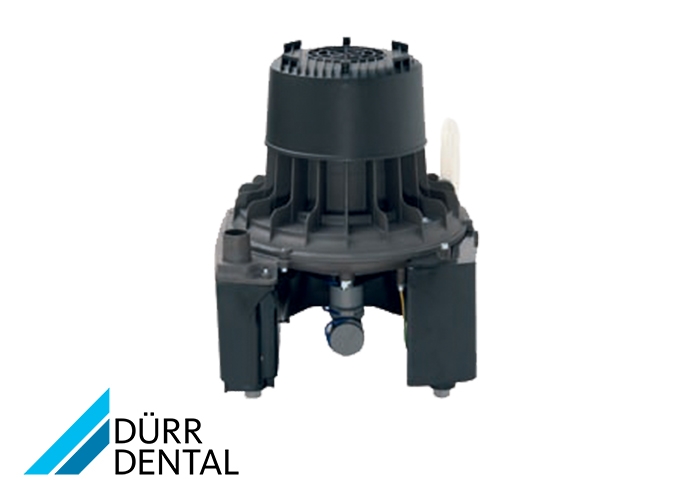

V 300 S
Treatment chairs: 1-2
Simultaneous operators: 1
The dry V Suction Systems
Sophisticated technology with convincing suction power.
High-quality, robust drive motors, reliable continuous operation, great suction power within seconds, and flexible installation options.
Amazing power
The dry air suction systems by Dürr Dental are extremely powerful yet run really quietly. The V suction units are called dry systems because the aspirated substances are quickly guided into a separation/amalgam elimination unit. These components are integrated into the Dental Unit. Only dry air reaches the suction unit. Seven to eight hours of continuous operation are not unusual. This places high demands on the technology. Dürr Dental V suction machines fulfil these requirements tirelessly. The contact-free, rotating turbine wheels generate the required vacuum and flow rate (suction power). A reliable electric motor enables non-stop operation. To reliably protect against condensated water, all models are fitted with a condensate separator as standard.
Feature:
- High-quality, robust drive motors
- Reliable continuous operation
- High-quality condensate separator to protect the unit from condensate
- Runners made from corrosion-resistant plastic (V 300 S, V 600) or coated aluminium(V 900 S, V 1200 S)
- High suction power within seconds
Technical data |
V 300 S |
Voltage (V 1~) |
230 |
Frequency (Hz) |
50/60 |
Current consumption (A) |
2.9/3.7 |
Power (kW) |
0.58/0.8 |
Speed (rpm) |
2,850 |
Vacuum (mbar) without AAV1) |
180 |
Cyclic duration factor (S1) |
100% |
Noise level dB(A)2) |
approx. 63, with housing approx. 54 |
Dimensions
|
37 x 31 x 3143 x 38 x 43 (with condensate separator)51 x 36 x 36 (with housing) |
Weight (kg) |
12.5, with housing 20 |
1) AAV = Auxiliary air valve
2) The noise level is influenced by the setup room. In a reverberant room (e.g. tiled walls) the noise level may be higher.
![]() |
