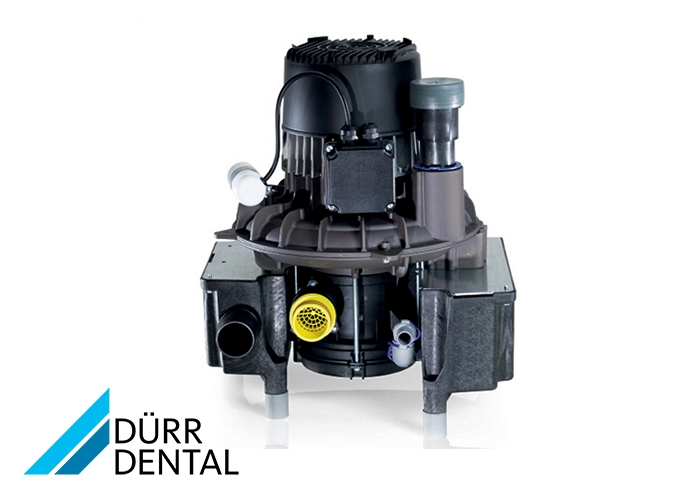

Dürr Dental VS 600
MYR15,500.001 items left
The product selection is not available.
Product Description:
When it comes to the remodeling or modernization of a dental surgery, VS combination suction units can be used even in difficult installation conditions.
Quantity
VS 600
Treatment chairs: 2-3
Simultaneous operators: 2

The Wet VS Suction Systems
Dürr Dental provides the right suction solution for every surgery.
When it comes to the remodelling or modernization of a dental  surgery, VS combination suction units can be used even in difficult installation conditions.

Powerful and cost-effective
“VS“ stands for the combination of vacuum generation and separation. VS suction units are called wet systems because the entire suction and separation function is combined cen-trally in a VS suction unit on one drive shaft. This allows signi-ficant savings to be made. For example, there is no need for separate separation machines on the Dental Units and some of the operating costs of traditional systems – such as water ring pumps – are no longer relevant.

Dürr Dental VS Suction Systems are power packs that you can rely on. They can aspirate large quantities of liquids and serve up to four operators at the same time without interruption. Thanks to the integrated two-stage separation system, the aspi-ration of secretions and blood foam into the turbine space is reliably prevented. The drive of the combination suction unit runs smoothly and without vibration and is extremely reliable. All important functional elements have corrosion protection finish, which contribute to their extraordinary long service lives.


Feature:
  • Corrosion protection thanks to galvanic coatings on housing parts and runners
  • High-quality, robust drive motors
  • Reliable continuous operation
  • Shared drive for separation and vacuum generation functions, making the systems extremely cost-effective and reliable with low space requirements
  • High foam tolerance thanks to innovative two-stage separation system
  • High suction power within seconds
  • Independent elimination of deposits though use of flow accelerator




Technical data
VS 600
Voltage (V 1~/V 3~)
230/400
Frequency (Hz)
50/ 50/60
Current consumption (A)
5.0/ 1.8 - 4.0
Power (kW)
1.1/ 1.1/1.4
Speed (rpm)
2,850
Cyclic duration factor (S1)
100 %
Noise level without housing dB(A)
approx. 63/approx. 63
Noise level with housing dB(A)
approx. 55/approx. 55
Dimensions without housing
(H x W x D cm)
50 x 42 x 41
Dimensions with housing
(H x W x D cm)
65 x 49 x 53
Weight without housing (kg)
25
Weight with housing (kg)
45
