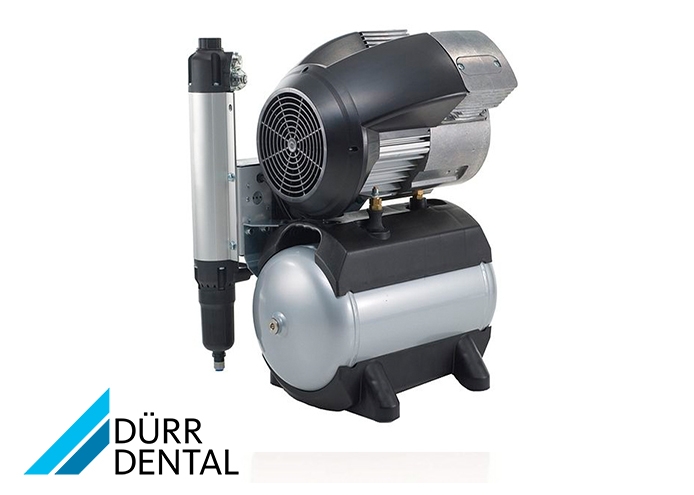

Tornado 2 - Super Silent
The Tornado is one of the quietest compressors in dentistry, yet it is still very powerful. The highly developed compressor set is extremely quiet, and can have a calming effect on both patient and practitioner.
Features:
- Oil-free, dry, hygienic, taste and odourless compressed air
- Very reliable thanks to the closed crankcase
- Extremely low-noise
- Plug ‘n’ play installation – place, plug in, ready
Less consumption, more efficiency
For decades the Tornado Compressor stood for quality at an attractive price. Efficiency was again boosted in the new model and energy consumption efficiently reduced by approx. 15 %. Good for your operating costs and environmentally friendly.
- Red dot design award winner 2011
| Technical data | without membrane-drying unit | with membrane-drying unit |
| Voltage (V 1∼) | 230 | 230 |
| Frequency (Hz) | 50/60 | 50/60 |
| Cylinder | 2 | 2 |
| Flow rate at 5 bar1) (l/min)2) | 124/140 | 110/126 |
| Tank capacity (l) | 20 | 20 |
| Pressure range 3) (bar) | 6 - 7,8 | 6 - 7,8 |
| Noise level 4) at 5 bar db(A) | 68 | 68 |
| Noise level in the cabinet db(A) | 59/62 | 59/62 |
| Dimensions (H x W x D cm) | 65 x 48 x 41 | 65 x 49 x 47 |
| Dimensions cabinet (H x W x D cm) | 84 x 63 x 53 | 84 x 63 x 60 |
| Weight (kg) | 38 | 43 |
1) The discharge flow without dry air
2) Power bandwidth results from the mains frequency 50/60 Hz
3) A pressure reducer is available as an option
4) Average values at 5 bar
 |
Brochure Tornado 2 | 1.39 MB | Download |
